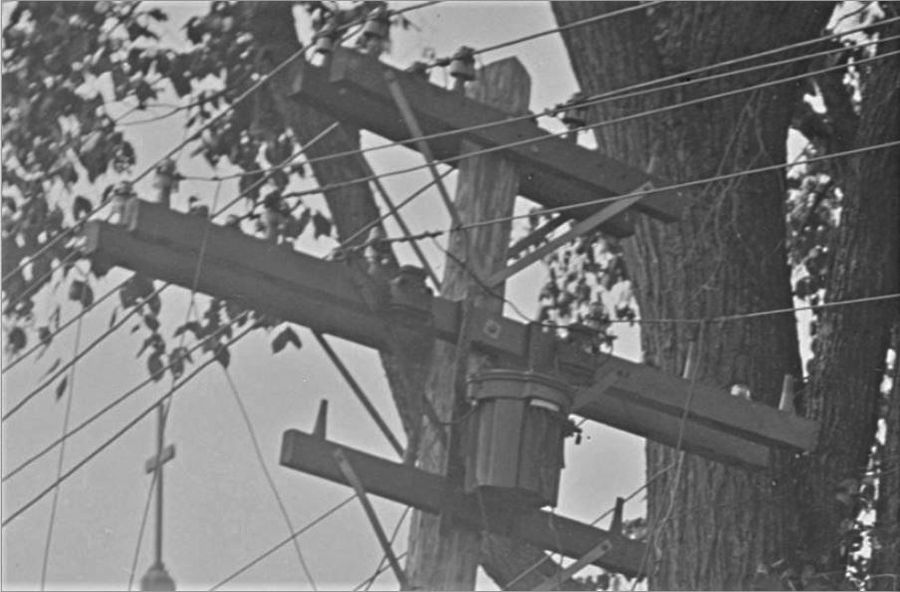

Central MA, c1912. Closeup View of Top of Pole with Electric Lines, Transformer.

By Joe Maurath, Jr.; posted May 28, 2020

View Original: Click to zoom, then click to magnify (904 x 595) 125KB




Note the two porcelain "plug-in" handle style cutouts on the middle crossarm. These contained primary-voltage fuses for the transformer from the same arm. Typically early instances like this one employed either 1,100 or 2,200 volts primary with 100 to 110 volts on the secondary side which led to customers' residences.

Click "Previous" for an overall look of this pole and its surroundings. And click "Next" for a closeup of the lower section of this pole showing a neat 6-pin crossover crossarm and street lamp.
