Delta-Star 7.5KV Burke Style Switch

By Shaun Rl; posted March 29, 2013
View Original: Click to zoom, then click to magnify (1214 x 902) 144KB

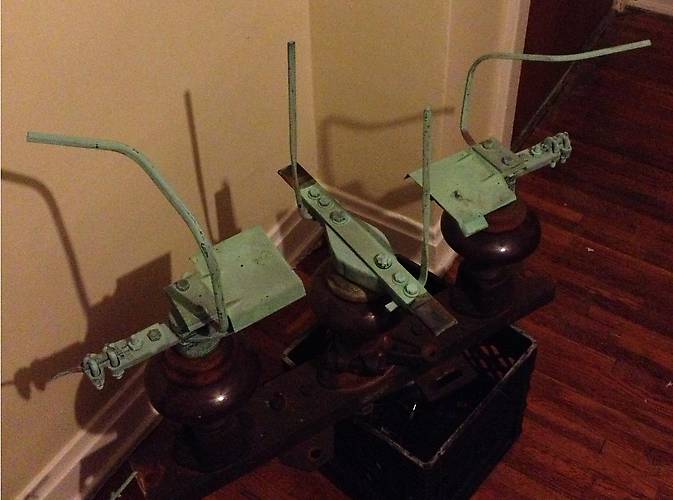

Here is another angle of this switch in the open position. The metal horns draw the arc away from the switch contacts and attempt to form a Jacob's Ladder to extinguish and quench the arc. The metal horns have pit marks on them where the switch was opened during high current loads.
