More paralleled transformers

By David Dahle; posted August 3, 2011

View Original: Click to zoom, then click to magnify (2048 x 1536) 1010KB

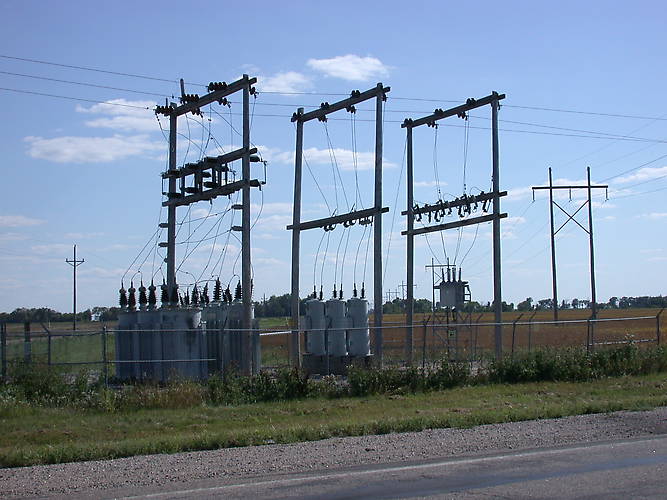

A converter sub in western Minnesota to drop 41.6kV to 24kV - two things of note; the two sets of transformers paralleled on the left side and just to the right, the voltage regulators have only two terminals instead of the more common three (perhaps the neutral connection is replaced by a ground connection to the tank?).
