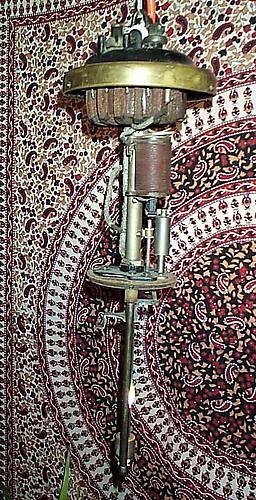

Interior of a GE arc lamp for multiple or paralel circuits

By Mike Spadafora; posted December 30, 2010

View Original: Click to zoom, then click to magnify (353 x 690) 130KB




This lamp, tho similar to appearance to the previously shown lamp is actually very different . It is designed to operate alone on regular 110 volt AC circuits in parallel with other lamps or as a stand alone unit . The coil in the head is an induction transformer that limits the current flow to the arc. Compare this to the more complex series circuit lamp..[id=297548384]
