Old Building Wiring2

By Jim Decker; posted February 27, 2009

View Original: Click to zoom, then click to magnify (960 x 1280) 230KB

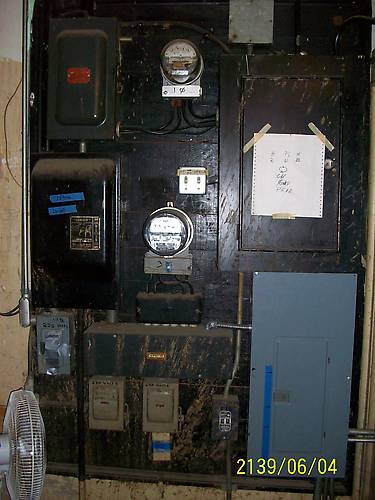

Here are the two services in the building. A-base meters and disconnect switches. The upper meter is single phase and feeds power to the lights and receptacles. The lower meter is a socket type with an A-Base adaptor and served the three phase loads of the elevator and sump pump.
