Cabin Pole Line52

By Jim Decker; posted February 14, 2009

View Original: Click to zoom, then click to magnify (2048 x 1536) 675KB

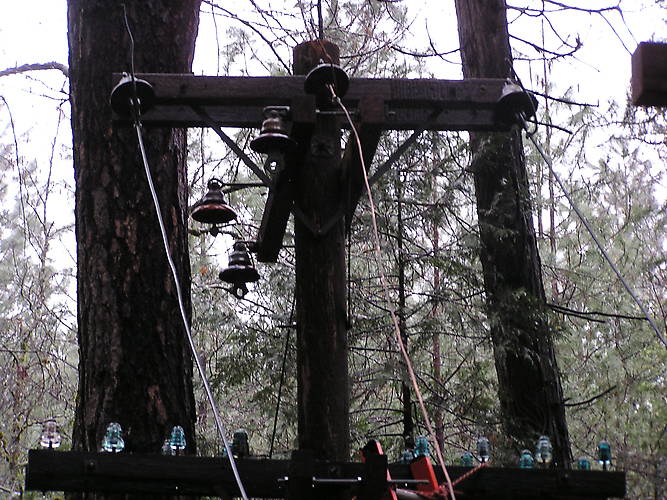

The pieces of insulated #1 copper have been spliced together using Nicopress sleeves, along with a #2 bare neutral all three conductors laid out and terminated at pole 7 using U bolt clamps. The suspensions are 7 1/2" Locke, Lapp or Pinco units removed from 4 or 12 KV lines in the Tracy, CA area.
