Hungarian terminal pole I

By Zoltán Drinóczi; posted October 31, 2008

View Original: Click to zoom, then click to magnify (960 x 1280) 242KB

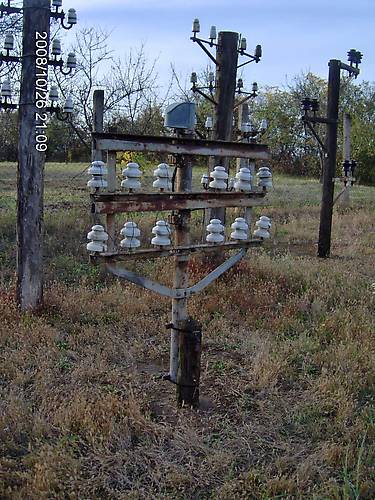

It is universal terminal pole, it can be roof holder too. The pole top is on a steel pipe.

It has two 6 pins crossarms with "tin channel", the rain protector channel. Some countries used Capper, Capoline etc Insulators, we used channels or Napoleon-hat Insulators for terminal. Because of it needs an emty crossarm to top.

If this pole would be dead-end, it would have normal Insulators, but this pole used to be "two way dead-end", it has transpositions, two wires goes from the cable to one Insulator.

http://myinsulators.com/hungary/kepek/tech/ter.gif

http://myinsulators.com/hungary/kepek/tech/pole/t14.gif

http://myinsulators.com/hungary/kepek/pole-m/1020028.jpg
