Busy pole - Updated service pic

By Cliff S.; posted March 27, 2002

View Original: Click to zoom, then click to magnify (640 x 480) 68KB

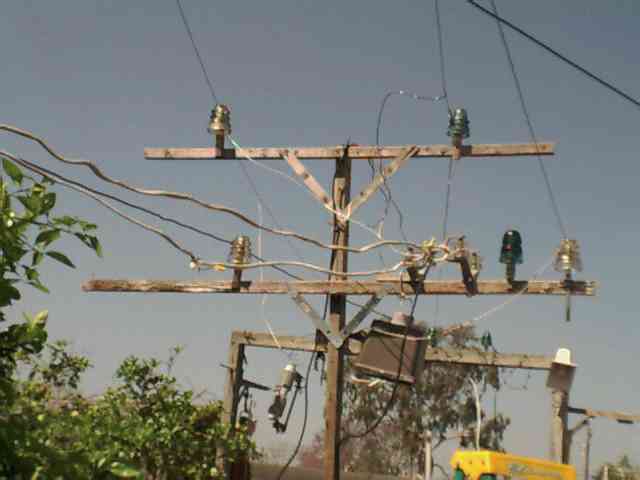

After taking the last pic of this pole, I changed a few things around and threw in more glass :) Here's everything you see: 3 CD 155s, one for Neutral, one for my shop's Cable TV, and the third, an under drop for that 70W HPS head you see mounted on the pole(and no it did not come with the twist-lock socket for the photocell, I added it myself ;-) ), a CD 145 just idling there for now (used to be the cable TV till I moved it over to the other side), a CD 162 on the hot, and 4 CD 1049 w/bracket being used to hold 2 drops: 1 to a nearby 70W HPS post head(not shown) and the other to my shop itself. and before you ask, yes the HPS lamp shown does work with it's setup ;-) CHANGES: The HPS lamp is now on the other side of the pole, the 145 and 155 are now back on my desk, the 155 to the left of the 2nd arm is now an OOS Hemi-9, the 2 glass insulators in the back arm have been replaced with single deadend disks, the wire coming to the 2 insulators on the upper arm has been replaced with a dead-end on both sides with a jumper in the same insulators, the rats nest in the 1049s has been cleared to 2 single wires to the shop and 1 to a thing of blinky lights, and the TV cable is no longer there.
