Messerschmidt ME-109E (Bf-109E) and radio strains

By Edward Brown; posted December 18, 2007

View Original: Click to zoom, then click to magnify (821 x 289) 78KB

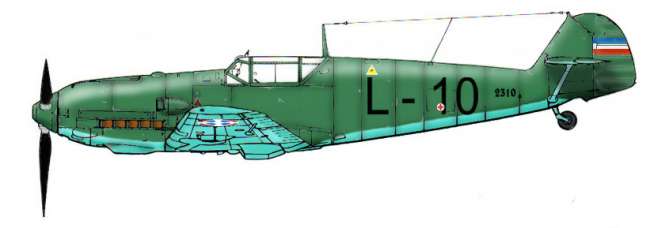

The ME-109 Radio Strain insulators are visible in this drawing of a Messerschmidt ME-109E (Bf-109E), this particular example shows non-German insignia.

A similar insulator is shown here: [id=196270750]

There are two of them, one located at each end of the dipole antenna over the rear portion of the aircraft.
