Mock-up display: 35/20 kV substation: 20 kV side

By Zoltán Drinóczi; posted November 9, 2005

View Original: Click to zoom, then click to magnify (1024 x 768) 299KB

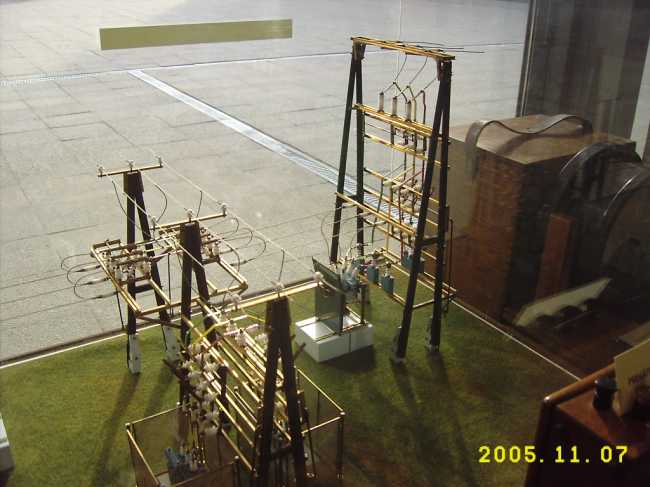

Here is the 20 kV go out side with switches and breakers. It is only one zone from the more ones, the 3 "A" poles are holding the busbars, they keep the contact with other terminal-switch and transformer zones.
