A Start

By Zachary Gillihan; posted November 6, 2005

View Original: Click to zoom, then click to magnify (2080 x 1544) 713KB

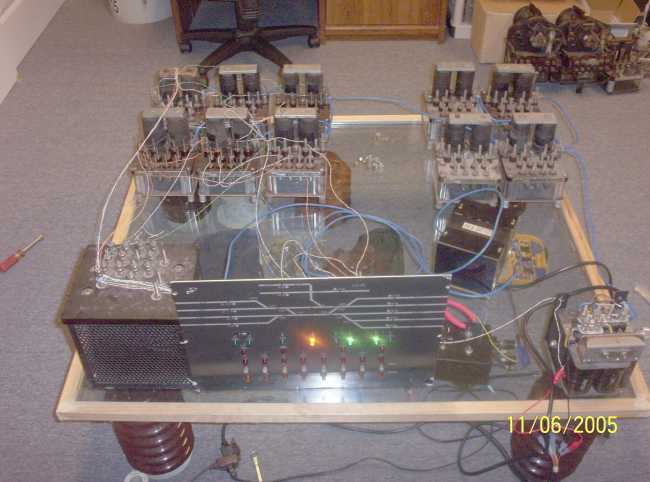

I took on a project of wiring this interlocking panel for my signals. This is only the signal portion. I need more relays (E-5) for all the switches and signals. Only have 2 on the signal parts wired and working note the green lights and the yellow to show there is power.
