Voltage supply

By Zoltán Drinóczi; posted May 24, 2005

View Original: Click to zoom, then click to magnify (1024 x 768) 322KB

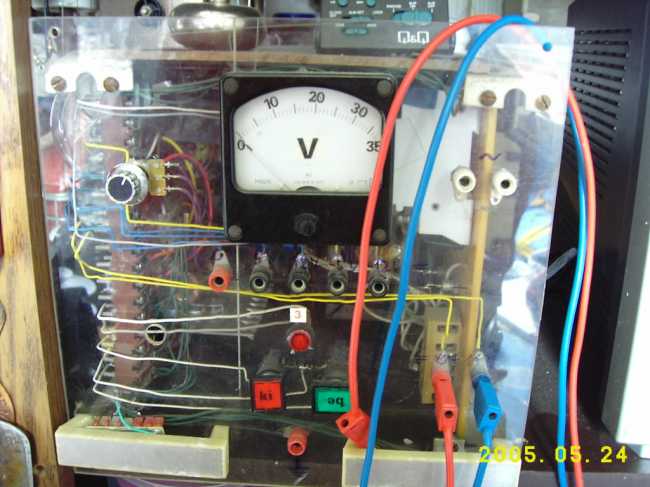

It is my product too, it has a variable voltage supply 0-15 V and it has a fixed voltage supply from PC power supply: +12 +5 -12 -6 V

I planned an AC supply, but the variable AC voltage need a variable toroid transformer, I didn't found it..
