Inside the desk, connections

By Zoltán Drinóczi; posted May 24, 2005

View Original: Click to zoom, then click to magnify (1024 x 768) 295KB

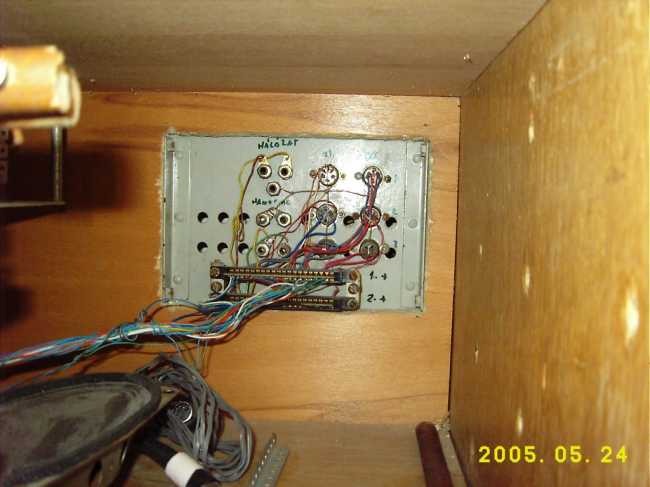

The musik wires connections. I wrote a documentation, because I don't know which connector is what, but I built it.. I has 6 switched circuits for stereo music. The shading is missing, but I don't hear it's waste.
