High Voltage Laboratory IX

By Zoltán Drinóczi; posted March 3, 2005

View Original: Click to zoom, then click to magnify (1600 x 1200) 781KB

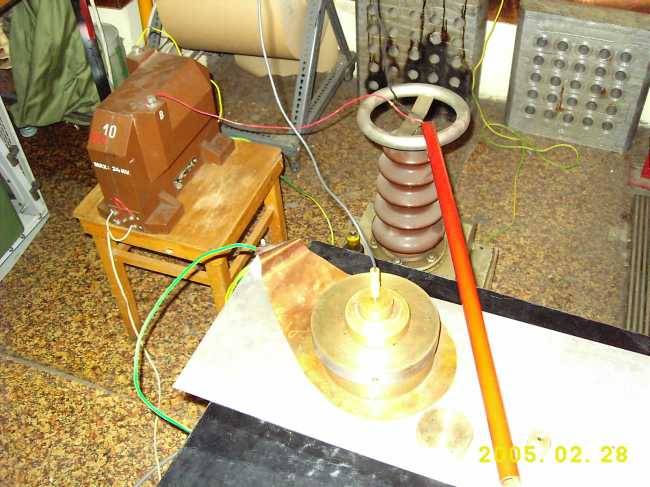

The electrodes. There is the transformer which product 24 kV. The red transformer is a voltage meter one.
