Signal Relay Cleaning, Apart

By Zachary Gillihan; posted February 2, 2005

View Original: Click to zoom, then click to magnify (1095 x 1227) 241KB

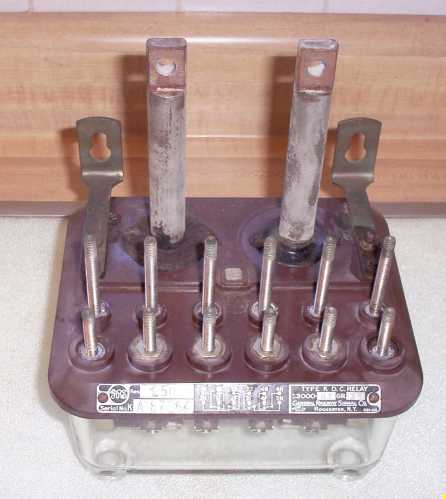

I decided to try and clean my relay so i broke it down to bare nothing but i didn't open the glass. Here's the top with everything removed, the coils and nuts, this is the relay after being cleaned.
