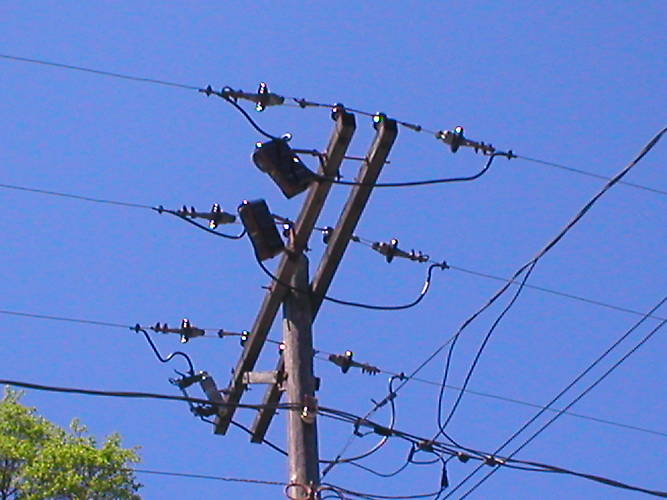

4kv 200A Rated Fuse Cutouts Split In-Line

By Joe Maurath, Jr.; posted June 9, 2009

View Original (1600 x 1200) 305KB




This is the same installation as seen a few photos down that I just posted. This was taken at a nice vantage point clearly showing how six-inch diameter suspension insulators were spliced in-line for fusing. I think these cutouts have well under 100A fuses in them since there about 50 residences connected to the load side of the above switching.
